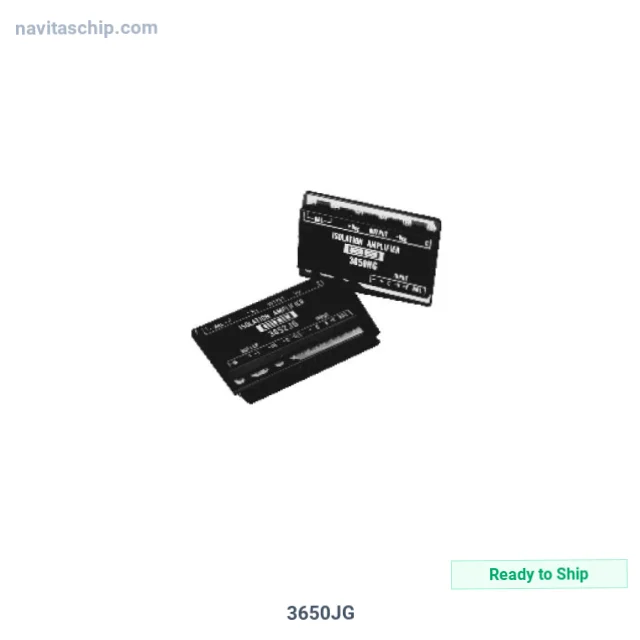

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 3650JG |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-300491 |
| Description | IC OPAMP ISOLATION 1 CIRC 32CDIP |
| Spec | 32-CDIP (0.900", 22.86mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| Slew Rate | 1.2V/µs |
| -3db Bandwidth | 15 kHz |
| Current - Input Bias | 10 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 2.3mA |
| Current - Output / Channel | 5 mA |
| Voltage - Supply Span (Min) | 16 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 32-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments 3650JG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 3650JG is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier Isolation 1 Circ 32cdip, housed in a compact 32-CDIP package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 85°C
- Mounting: Through Hole
- Package: 32-CDIP (0.900", 22.86mm)
- Device Package: 32-CDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
