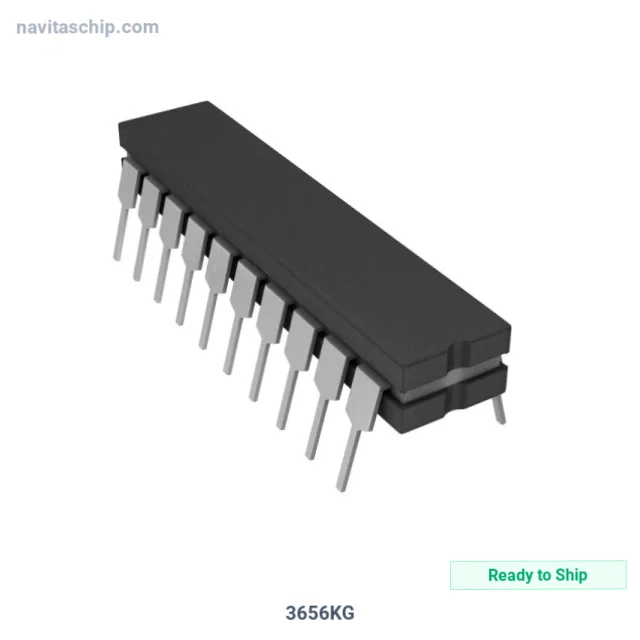

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 3656KG |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-300498 |
| Description | IC OPAMP ISOLATION 1 CIRC 20CDIP |
| Spec | 20-CDIP (0.900", 22.86mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| Slew Rate | 0.1V/µs |
| -3db Bandwidth | 30 kHz |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 14mA |
| Current - Output / Channel | 5 mA |
| Voltage - Supply Span (Min) | 17 V |
| Voltage - Supply Span (Max) | 32 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments 3656KG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 3656KG is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier Isolation 1 Circ 20cdip, housed in a compact 20-CDIP package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 20-CDIP (0.900", 22.86mm)
- Device Package: 20-CDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
