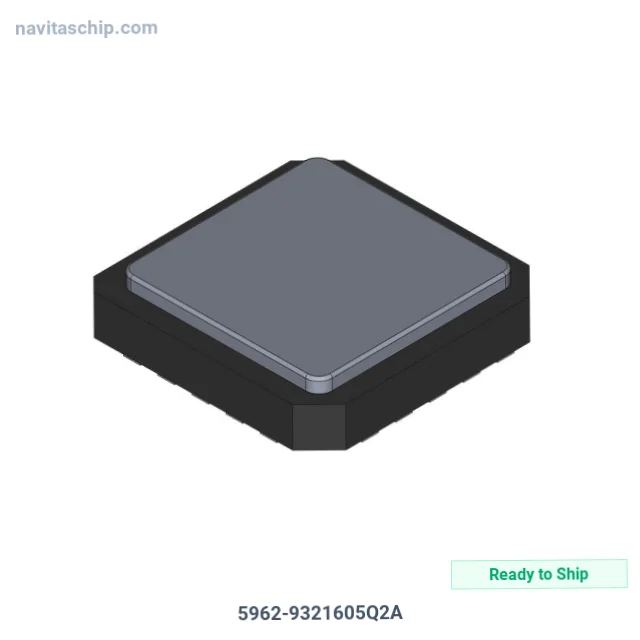

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 5962-9321605Q2A |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-13478467 |
| Description | IC OPAMP GP 4 CIRCUIT 20LCCC |
| Spec | 20-CLCC |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 45V/µs |
| Gain Bandwidth Product | 5.9 MHz |
| Current - Input Bias | 700 nA |
| Voltage - Input Offset | 290 µV |
| Current - Supply | 6.9mA (x4 Channels) |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 44 V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments 5962-9321605Q2A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 5962-9321605Q2A is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier General Purpose 4 Circuit 20lccc, housed in a compact 20-LCCC (8.89x8.89) package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 20-CLCC
- Device Package: 20-LCCC (8.89x8.89)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
