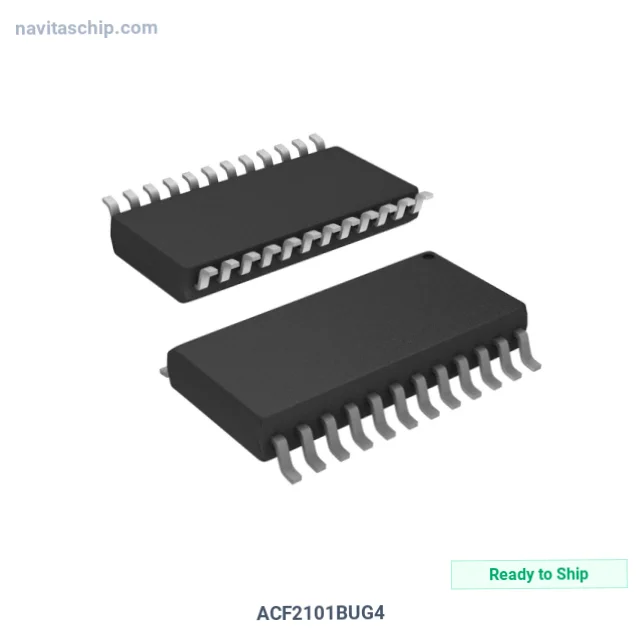

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ACF2101BUG4 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1689027 |
| Description | IC SW INTEG 2 CIRCUIT 24SOIC |
| Spec | 24-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Discontinued at |
| Amplifier Type | Switched Integrator |
| Number of Circuits | 2 |
| Slew Rate | 3V/µs |
| Gain Bandwidth Product | 2 MHz |
| Current - Input Bias | 0.1 pA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 12mA (x2 Channels) |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 14.5 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ACF2101BUG4 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ACF2101BUG4 is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Switch Integ 2 Circuit in 24-Pin SOIC Package, housed in a compact 24-SOIC package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-SOIC (0.295", 7.50mm Width)
- Device Package: 24-SOIC
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
