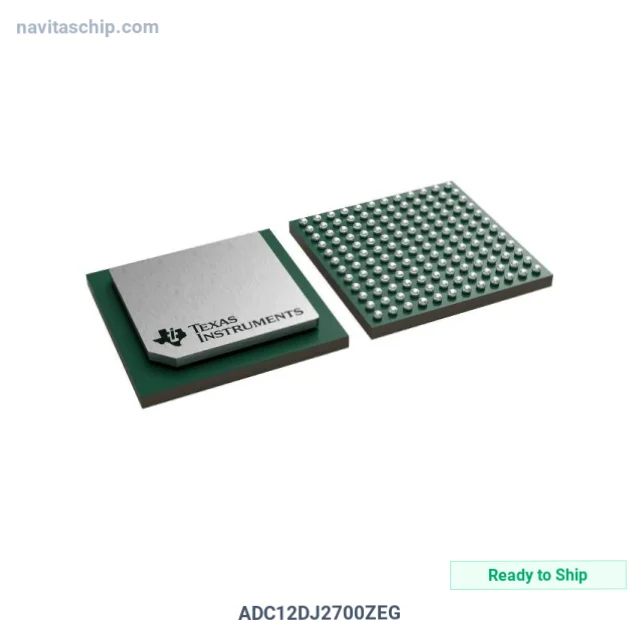

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADC12DJ2700ZEG |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-11502032 |
| Description | IC ADC PIPELINED 144FCBGA |
| Spec | 144-BGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Sampling Rate (Per Second) | 2.7G, 5.4G |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | JESD204B, Serial |
| Configuration | MUX-ADC |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.05V, 1.8V ~ 1.15V, 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 144-FCBGA |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADC12DJ2700ZEG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADC12DJ2700ZEG is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Integrated Circuit Analog-To-Digital Converter Pipelined in 144-Pin BGA Package, housed in a compact 144-FCBGA package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 144-BGA, FCBGA
- Device Package: 144-FCBGA
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
