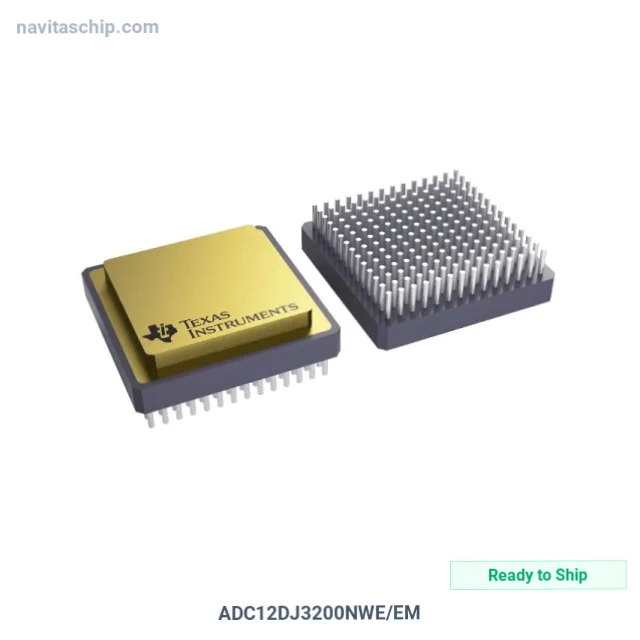

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADC12DJ3200NWE/EM |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-15856783 |
| Description | IC ADC 6.4G SPS 196-CCGA |
| Spec | 196-BCPGA |
| Package | Box |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Box |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 6.4G |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | JESD204B |
| Configuration | MUX-ADC |
| Ratio - S/H | 0:2 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined, SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.05V ~ 1.15V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V |
| Features | Simultaneous Sampling |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 196-CCGA (27.94x27.94) |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADC12DJ3200NWE/EM Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADC12DJ3200NWE/EM is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Integrated Circuit Analog-To-Digital Converter 6.4g Sps 196-Ccga, housed in a compact 196-CCGA (27.94x27.94) package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 196-BCPGA
- Device Package: 196-CCGA (27.94x27.94)
Packaging: factory Box or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
