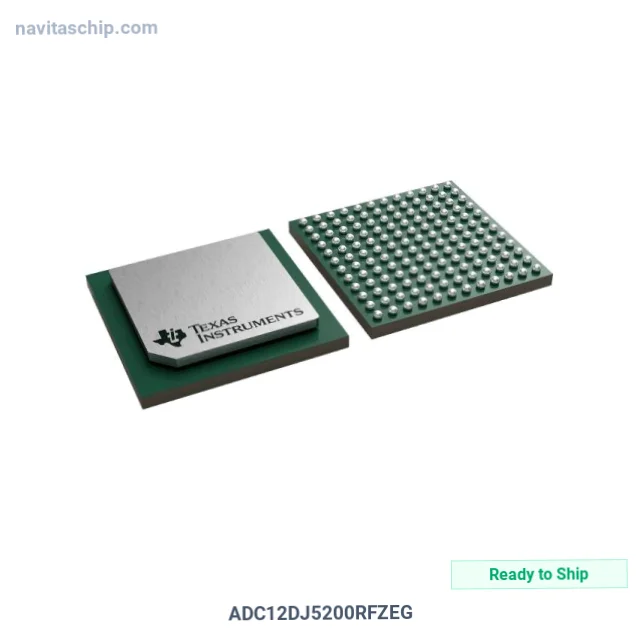

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADC12DJ5200RFZEG |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-15222338 |
| Description | RF-SAMPLING 12-BIT ADC WITH DUAL |
| Spec | 144-BGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 12 |
| Number of Inputs | 2 |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 2 |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.05V ~ 1.15V, 1.8V ~ 2V |
| Voltage - Supply, Digital | 1.05V ~ 1.15V |
| Features | Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 144-FCBGA |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADC12DJ5200RFZEG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADC12DJ5200RFZEG is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Rf-Sampling 12-Bit Analog-To-Digital Converter with Dual, housed in a compact 144-FCBGA package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 144-BGA, FCBGA
- Device Package: 144-FCBGA
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
