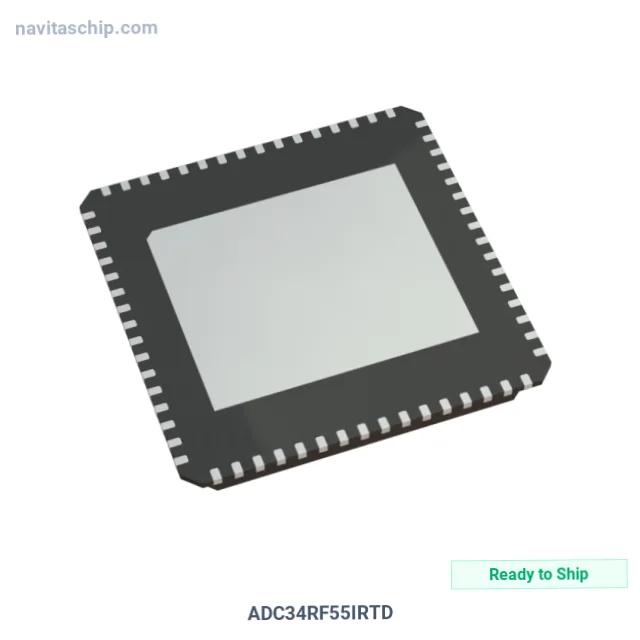

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADC34RF55IRTD |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-22147336 |
| Description | QUAD-CHANNEL 14-BIT 3-GSPS LO |
| Spec | 64-VFQFN Exposed Pad |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 3G |
| Number of Inputs | 4 |
| Input Type | Differential |
| Data Interface | JESD204B, Parallel, SPI |
| Configuration | ADC |
| Ratio - S/H | 0:8 |
| Number of A/D Converters | 8 |
| Voltage - Supply, Analog | 1.175V ~ 1.225V, 1.75V ~ 1.85V |
| Voltage - Supply, Digital | 1.175V ~ 1.225V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 64-VQFN (9x9) |
| Mounting Type | Surface Mount, Wettable Flank |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADC34RF55IRTD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADC34RF55IRTD is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Quad-Channel 14-Bit 3-Gsps Low, housed in a compact 64-VQFN (9x9) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount, Wettable Flank
- Package: 64-VFQFN Exposed Pad
- Device Package: 64-VQFN (9x9)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
