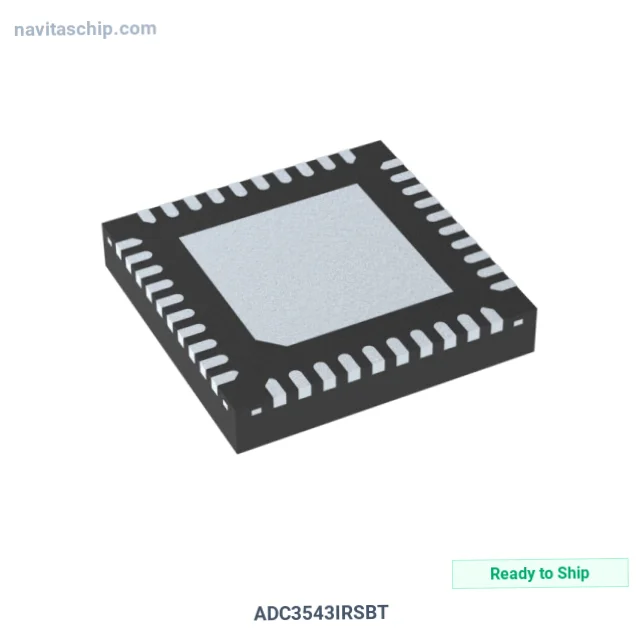

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADC3543IRSBT |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-17797903 |
| Description | SINGLE-CHANNEL, 14-BIT, 65-MSPS, |
| Spec | 40-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 65M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Serial, SPI |
| Configuration | ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.75V ~ 1.85V |
| Voltage - Supply, Digital | 1.75V ~ 1.85V |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 40-WQFN (5x5) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADC3543IRSBT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADC3543IRSBT is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Single-Channel, housed in a compact 40-WQFN (5x5) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 40-WFQFN Exposed Pad
- Device Package: 40-WQFN (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
