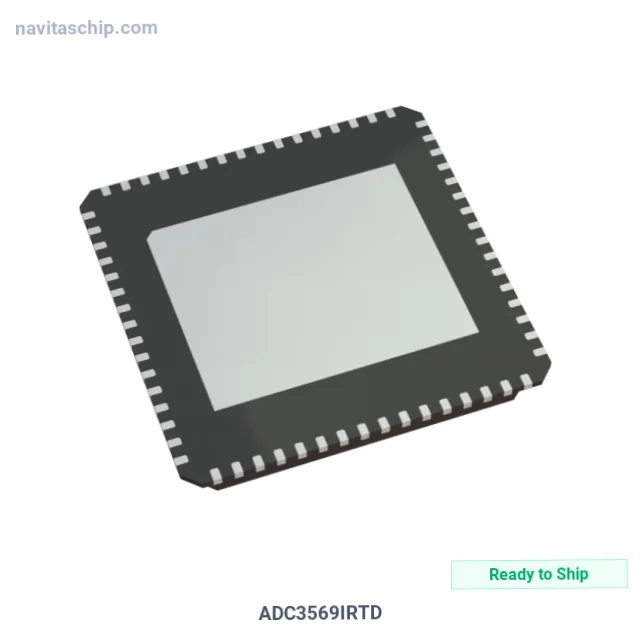

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADC3569IRTD |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-25821253 |
| Description | 16-BIT ONE-CHANNEL 500MSPS ADC W |
| Spec | 64-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 500M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Serial, SPI |
| Configuration | ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.15V ~ 1.225V, 1.75V ~ 1.85V |
| Voltage - Supply, Digital | 1.15V ~ 1.225V, 1.75V ~ 1.85V |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 64-VQFN (9x9) |
| Mounting Type | Surface Mount, Wettable Flank |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADC3569IRTD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADC3569IRTD is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). 16-Bit One-Channel 500msps Analog-To-Digital Converter W, housed in a compact 64-VQFN (9x9) package.
In today's market, end-of-life pipeline ADC transition without firmware or analog front-end redesign can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount, Wettable Flank
- Package: 64-VFQFN Exposed Pad
- Device Package: 64-VQFN (9x9)
Applications
Ideal solution for:
- embedded systems
- flash and subranging ADC for ultra-high-speed waveform digitization
- portable battery-powered handheld instrumentation and field test equipment
Why Choose NavitasChip for ADC3569IRTD?
NavitasChip offers wholesale pricing advantages for the ADC3569IRTD and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Ships from Hong Kong, Singapore, or Shenzhen based on destination requirements.
ADC3569IRTD - Upload your BOM for fast pricing.
