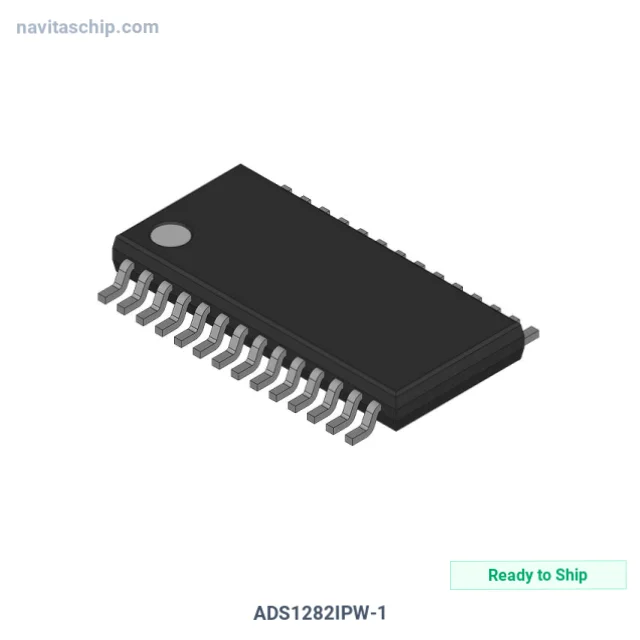

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADS1282IPW-1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-12093843 |
| Description | ANALOG DATA CONVERTR |
| Spec | 28-TSSOP (0.173", 4.40mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Obsolete |
| Number of Bits | 31 |
| Sampling Rate (Per Second) | 4k |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | PGA |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 28-TSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADS1282IPW-1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADS1282IPW-1 is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Analog Data Convertr, housed in a compact 28-TSSOP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-TSSOP (0.173", 4.40mm Width)
- Device Package: 28-TSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
