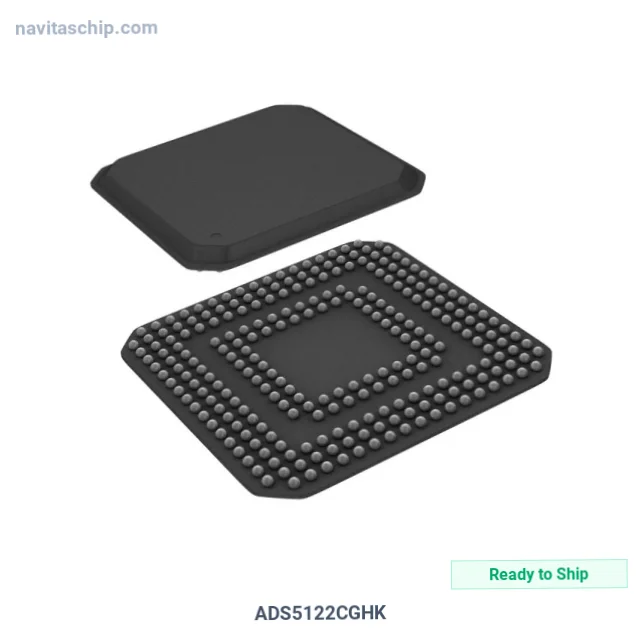

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADS5122CGHK |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-565659 |
| Description | IC ADC 10BIT PIPELINED 257BGA |
| Spec | 257-LFBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Obsolete |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 65M |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 8 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.65V ~ 2V |
| Voltage - Supply, Digital | 1.65V ~ 2V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 257-BGA MICROSTAR (16x16) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADS5122CGHK Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADS5122CGHK is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Integrated Circuit Analog-To-Digital Converter 10bit Pipelined in 257-Pin BGA Package, housed in a compact 257-BGA MICROSTAR (16x16) package.
In today's market, challenging Target Price (TP) requirements can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 257-LFBGA
- Device Package: 257-BGA MICROSTAR (16x16)
Applications
Critical part of:
- consumer electronics
- integrated-reference low-power ADC for always-on battery-powered measurement
- communication waveform sampling and software-defined radio receivers
Why Choose NavitasChip for ADS5122CGHK?
NavitasChip offers cost-effective alternative to authorized distributors for the ADS5122CGHK and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Bulk or Custom Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
ADS5122CGHK sourced and shipped via our Asia-Pacific distribution network.
ADS5122CGHK - Check our competitive price now.
