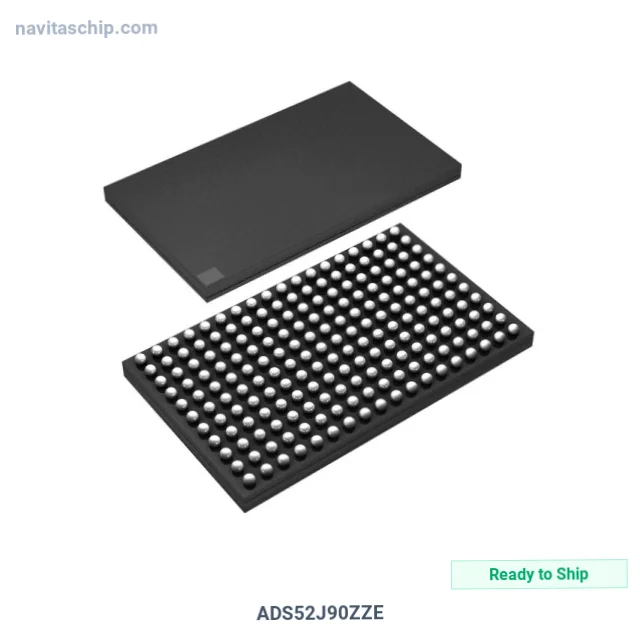

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADS52J90ZZE |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-5994307 |
| Description | IC ADC 14BIT PIPELINED 198NFBGA |
| Spec | 198-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 100M |
| Number of Inputs | 8, 16, 32 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | MUX-ADC |
| Number of A/D Converters | 16 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.15V ~ 1.25V, 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 198-NFBGA (9x15) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADS52J90ZZE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADS52J90ZZE is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Integrated Circuit Analog-To-Digital Converter 14bit Pipelined in 198-Pin BGA Package, housed in a compact 198-NFBGA (9x15) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 198-LFBGA
- Device Package: 198-NFBGA (9x15)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
