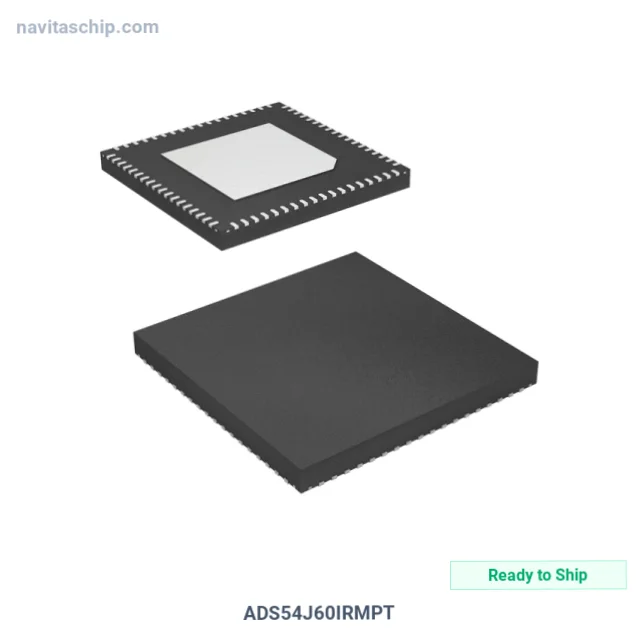

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADS54J60IRMPT |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-5764617 |
| Description | IC ADC 16BIT PIPELINED 72VQFN |
| Spec | 72-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1G |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | JESD204B |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External |
| Voltage - Supply, Analog | 1.8V ~ 2V, 2.85V ~ 3.6V |
| Voltage - Supply, Digital | 1.7V ~ 2V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 72-VQFN (10x10) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADS54J60IRMPT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADS54J60IRMPT is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Integrated Circuit Analog-To-Digital Converter 16bit Pipelined 72vqfn, housed in a compact 72-VQFN (10x10) package.
In today's market, hard-to-find Linear LTC and Maxim MAX legacy ADC with original date codes and traceability can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 72-VFQFN Exposed Pad
- Device Package: 72-VQFN (10x10)
- RoHS Compliant
Applications
Widely adopted for:
- consumer electronics
- flash and subranging ADC for ultra-high-speed waveform digitization
- 16-bit and 18-bit high-resolution ADC for instrumentation and process control
Why Choose NavitasChip for ADS54J60IRMPT?
NavitasChip offers global surplus sourcing network for the ADS54J60IRMPT and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for ADS54J60IRMPT, serving customers in New Zealand, Australia, and worldwide.
ADS54J60IRMPT - Request a quote today.
