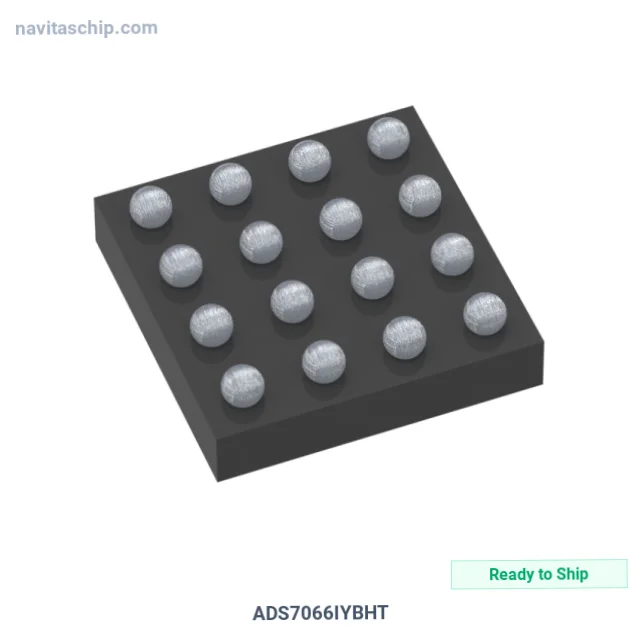

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADS7066IYBHT |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-15856995 |
| Description | IC ANALOG TO DIGITAL CONVERTER |
| Spec | 16-XFBGA, DSBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | Internal Oscillator |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 16-DSBGA (1.62x1.62) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADS7066IYBHT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADS7066IYBHT is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Integrated Circuit Analog to Digital Converter, housed in a compact 16-DSBGA (1.62x1.62) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-XFBGA, DSBGA
- Device Package: 16-DSBGA (1.62x1.62)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
