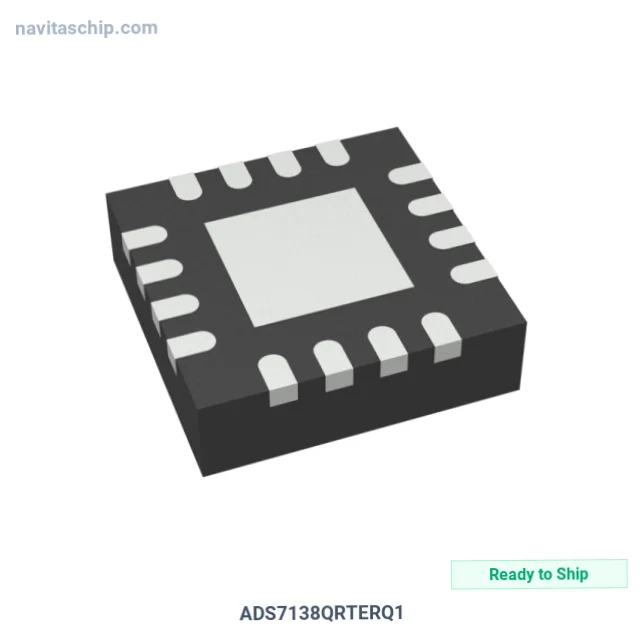

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADS7138QRTERQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-13545376 |
| Description | IC ADC 12BIT SAR 16WQFN |
| Spec | 16-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Texas Instruments |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 12 |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | I2C |
| Configuration | MUX-ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 5.5V |
| Features | Internal Oscillator |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 16-WQFN (3x3) |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADS7138QRTERQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADS7138QRTERQ1 is an Analog-to-Digital Converter (ADC) manufactured by Texas Instruments (TI). Integrated Circuit Analog-To-Digital Converter 12bit Sar 16wqfn, housed in a compact 16-WQFN (3x3) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-WFQFN Exposed Pad
- Device Package: 16-WQFN (3x3)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
