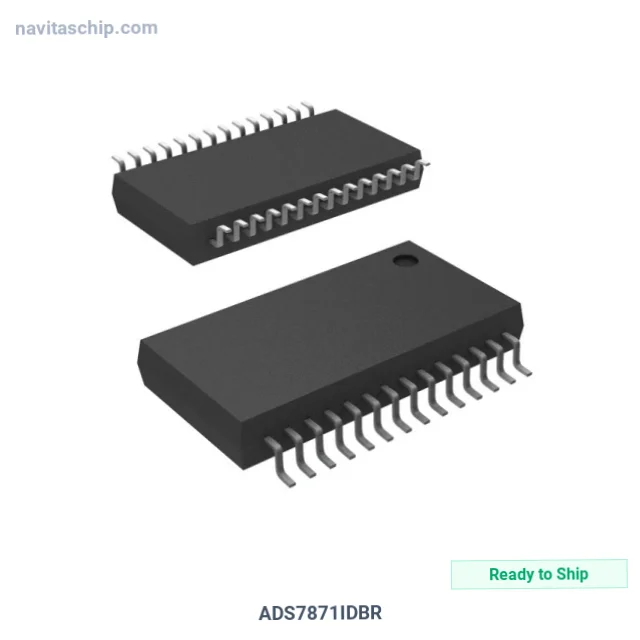

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADS7871IDBR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1689577 |
| Description | IC DAS/ADC 14BIT 48K 28SSOP |
| Spec | 28-SSOP (0.209", 5.30mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 14 b |
| Sampling Rate (Per Second) | 48k |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ADS7871IDBR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADS7871IDBR is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). Integrated Circuit Das/analog-To-Digital Converter 14bit 48k in 28-Pin SSOP Package, housed in a compact 28-SSOP package, with 2.7V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.7V ~ 5.5V
- Channels: 8
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-SSOP (0.209", 5.30mm Width)
- Device Package: 28-SSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
