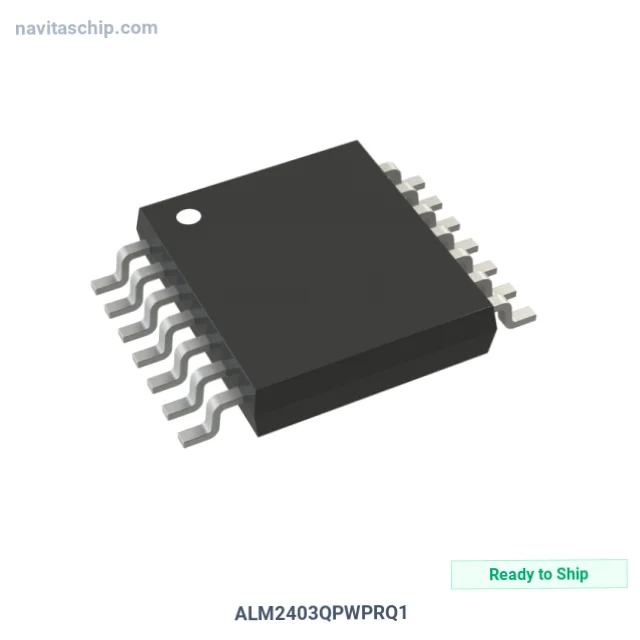

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ALM2403QPWPRQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-13627106 |
| Description | IC OPAMP GP 2 CIRCUIT 14HTSSOP |
| Spec | 14-PowerTSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 50V/µs |
| Gain Bandwidth Product | 21 MHz |
| Current - Input Bias | 10 pA |
| Voltage - Input Offset | 6 mV |
| Current - Supply | 3.6mA |
| Current - Output / Channel | 500 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 24 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-HTSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ALM2403QPWPRQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ALM2403QPWPRQ1 is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier General Purpose 2 Circuit 14htssop, housed in a compact 14-HTSSOP package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 14-PowerTSSOP (0.173", 4.40mm Width)
- Device Package: 14-HTSSOP
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
