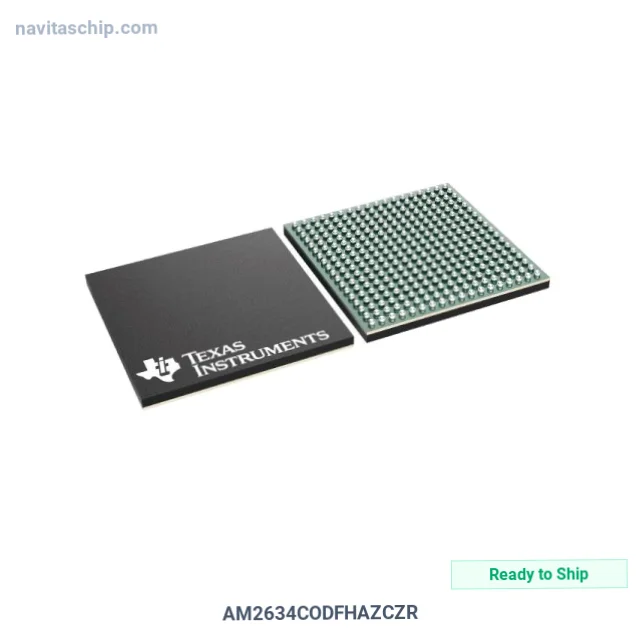

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AM2634CODFHAZCZR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-19236259 |
| Description | QUAD-CORE ARM CORTEX-R5F MCU UP |
| Spec | 324-LFBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | ARM® Cortex®-R5F |
| Core Size | 32-Bit Quad-Core |
| Speed | 400MHz |
| Connectivity | CANbus, Ethernet, I2C, MMC/SDIO, QSPI, SPI, UART/USART |
| Peripherals | AES, DMA, POR, PWM, SHA, TRNG, WDT |
| Number of I/O | 140 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | Tightly Coupled Memory (TCM) |
| RAM Size | 2M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.26V |
| Data Converters | A/D 6x12b SAR; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 324-NFBGA (15x15) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments AM2634CODFHAZCZR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AM2634CODFHAZCZR is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Quad-Core Arm Cortex-R5f Microcontroller Up, housed in a compact 324-NFBGA (15x15) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TJ)
- Mounting: Surface Mount
- Package: 324-LFBGA
- Device Package: 324-NFBGA (15x15)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
