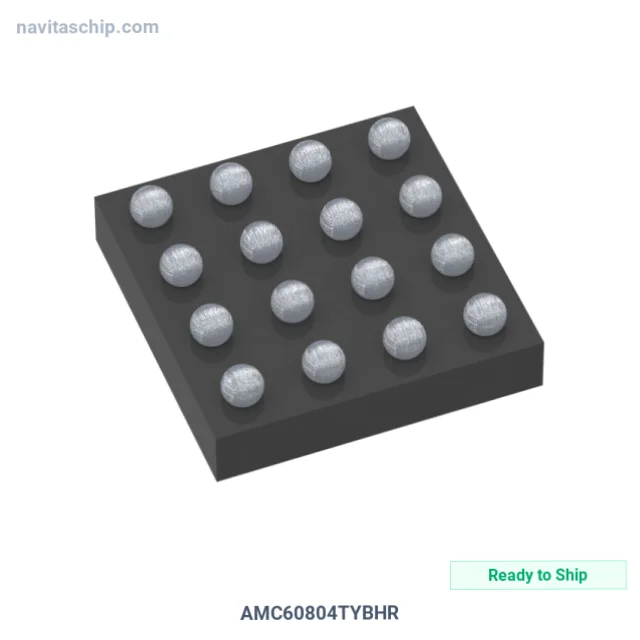

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AMC60804TYBHR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-17873856 |
| Description | OPTICAL TRANSCEIVER CONTROLLER W |
| Spec | 36-XFBGA, DSBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | ADC, DAC |
| Number of Channels | 4 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 1M |
| Data Interface | I2C, SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 1.7V ~ 3.6V, 1.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 36-DSBGA (2.56x2.56) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments AMC60804TYBHR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AMC60804TYBHR is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). Optical Transceiver Controller W, housed in a compact 36-DSBGA (2.56x2.56) package, with 1.7V ~ 3.6V, 1.7V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.7V ~ 3.6V, 1.7V ~ 3.6V
- Channels: 4
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 36-XFBGA, DSBGA
- Device Package: 36-DSBGA (2.56x2.56)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
