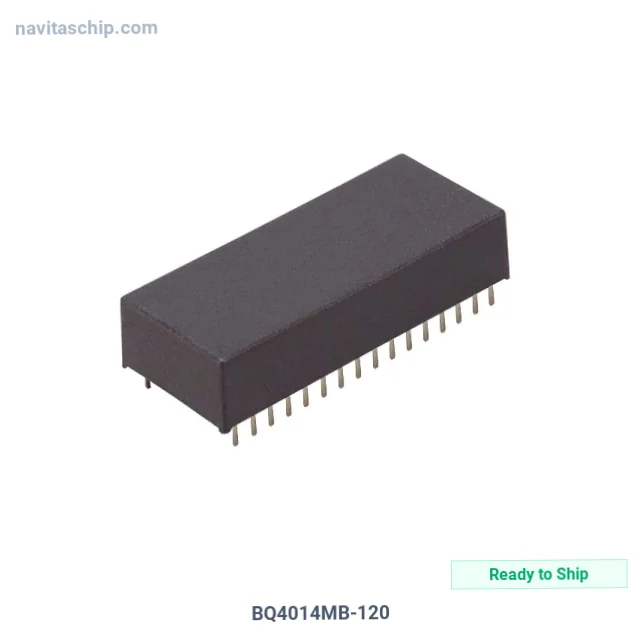

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | BQ4014MB-120 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1690409 |
| Description | IC NVSRAM 2MBIT PAR 32DIP MODULE |
| Spec | 32-DIP Module (0.61", 15.49mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Memory Type | Non-Volatile |
| Memory Format | NVSRAM |
| Technology | NVSRAM (Non-Volatile SRAM) |
| Memory Size | 2Mbit |
| Memory Organization | 256K x 8 |
| Memory Interface | Parallel |
| Write Cycle Time - Word, Page | 120ns |
| Access Time | 120 ns |
| Voltage - Supply | 4.75V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 32-DIP Module (18.42x52.96) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments BQ4014MB-120 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The BQ4014MB-120 is a Memory IC manufactured by Texas Instruments (TI). Integrated Circuit Nvsram 2mbit Parallel in 32-Pin DIP Package Module, housed in a compact 32-DIP Module (18.42x52.96) package, with 4.75V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Through Hole
- Package: 32-DIP Module (0.61", 15.49mm)
- Device Package: 32-DIP Module (18.42x52.96)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
