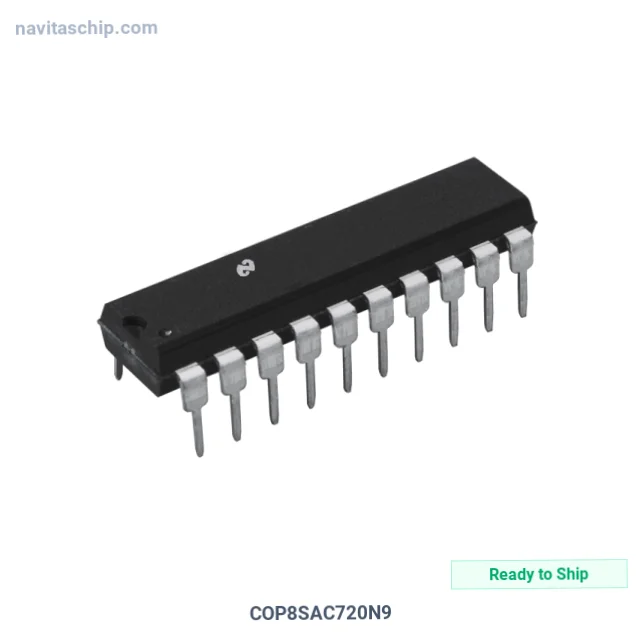

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | COP8SAC720N9 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | N96109158 |
| Description | IC MCU 8BIT 4KB OTP 20DIP |
| Spec | 20-DIP (0.300\ |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | COP8 |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | Microwire/Plus (SPI) |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | OTP |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments COP8SAC720N9 Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
Product Description
The COP8SAC720N9 is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 8bit 4kb Overtemperature Protection in 20-Pin DIP Package, housed in a compact 20-PDIP package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Through Hole
- Package: 20-DIP (0.300\
- Device Package: 20-PDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
