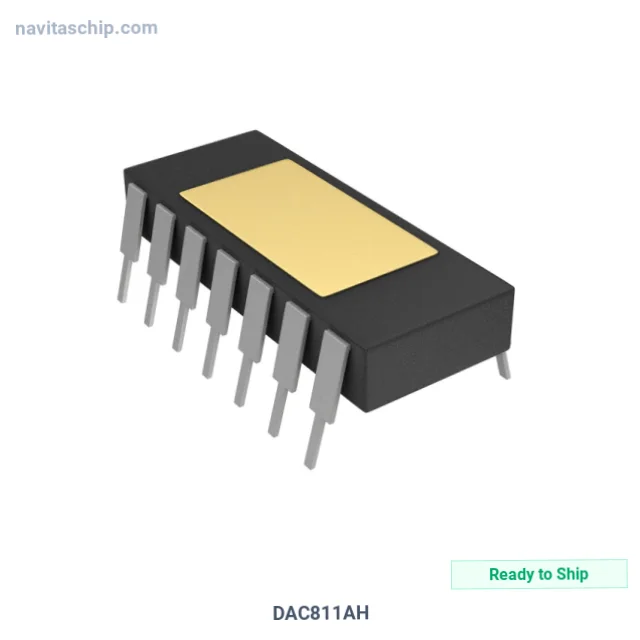

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC811AH |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-251057 |
| Description | IC DAC 12BIT V-OUT 28CDIP |
| Spec | 28-CDIP (0.600", 15.24mm) Window |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 4µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±0.25, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -25°C ~ 85°C |
| Supplier Device Package | 28-CDIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DAC811AH Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC811AH is a Digital-to-Analog Converter (DAC) manufactured by Texas Instruments (TI). Integrated Circuit Digital-To-Analog Converter 12bit V-Out 28cdip, housed in a compact 28-CDIP package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -25°C ~ 85°C
- Mounting: Through Hole
- Package: 28-CDIP (0.600", 15.24mm) Window
- Device Package: 28-CDIP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
