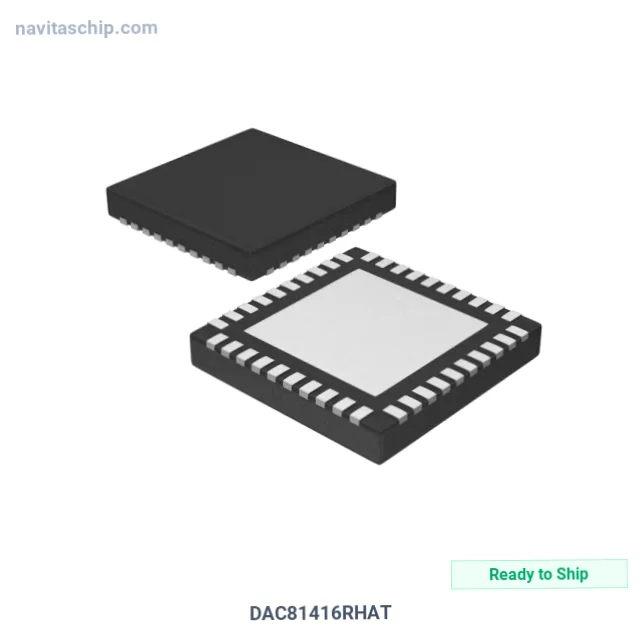

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC81416RHAT |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-9860746 |
| Description | IC DAC 16BIT 40VQFN |
| Spec | 40-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 12µs (Typ) |
| Differential Output | No |
| Data Interface | Serial |
| Reference Type | Internal |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 40-VQFN (6x6) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DAC81416RHAT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC81416RHAT is a Digital-to-Analog Converter (DAC) manufactured by Texas Instruments (TI). Integrated Circuit Digital-To-Analog Converter 16bit 40vqfn, housed in a compact 40-VQFN (6x6) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad
- Device Package: 40-VQFN (6x6)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
