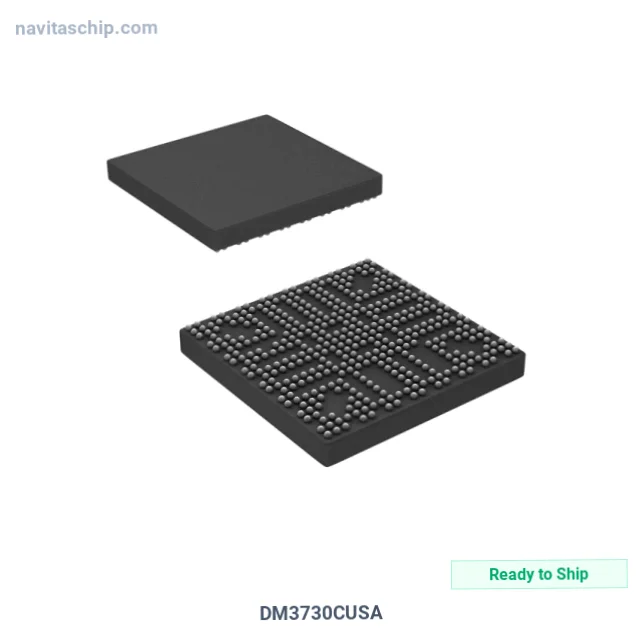

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DM3730CUSA |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-2695737 |
| Description | IC DGTL MEDIA PROCESSOR 423FCBGA |
| Spec | 423-LFBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Type | Digital Media System-on-Chip (DMSoC) |
| Interface | 1-Wire®, EBI/EMI, I2C, McBSP, McSPI, MMC/SD, UART, USB, USB OTG |
| Clock Rate | 800MHz |
| Non-Volatile Memory | ROM (32kB) |
| On-Chip RAM | 384kB |
| Voltage - I/O | 1.80V |
| Voltage - Core | 1.10V |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 423-FCBGA (16x16) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DM3730CUSA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DM3730CUSA is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Dgtl Media Processor in 423-Pin BGA Package, housed in a compact 423-FCBGA (16x16) package.
Key Technical Specifications
- Interface: 1-Wire®, EBI/EMI, I2C, McBSP, McSPI, MMC/SD, UART, USB, USB OTG
- Operating Temperature: -40°C ~ 105°C (TJ)
- Mounting: Surface Mount
- Package: 423-LFBGA, FCBGA
- Device Package: 423-FCBGA (16x16)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
