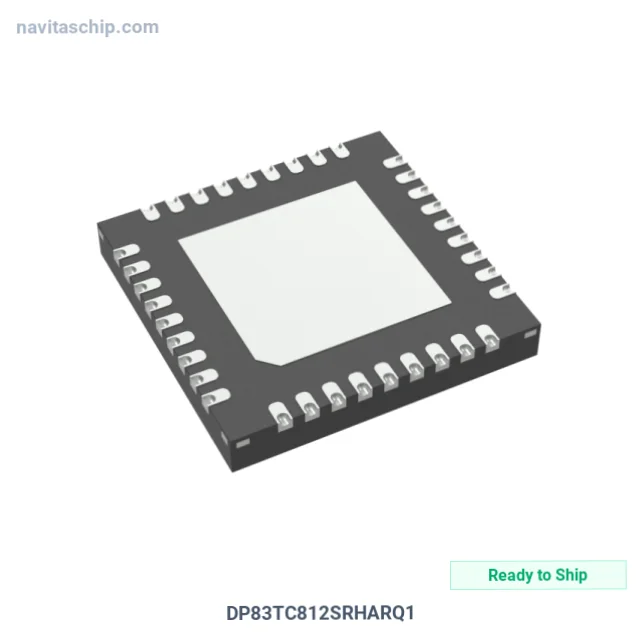

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DP83TC812SRHARQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-15856953 |
| Description | IC TXRX FULL/HALF 4/4 36VQFN |
| Spec | 36-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | Ethernet |
| Number of Drivers/Receivers | 4/4 |
| Duplex | Full, Half |
| Voltage - Supply | 2.97V ~ 3.63V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 36-VQFN (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DP83TC812SRHARQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DP83TC812SRHARQ1 is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver Full/half 4/4 36vqfn, housed in a compact 36-VQFN (6x6) package, with 2.97V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.97V ~ 3.63V
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount, Wettable Flank
- Package: 36-VFQFN Exposed Pad
- Device Package: 36-VQFN (6x6)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
