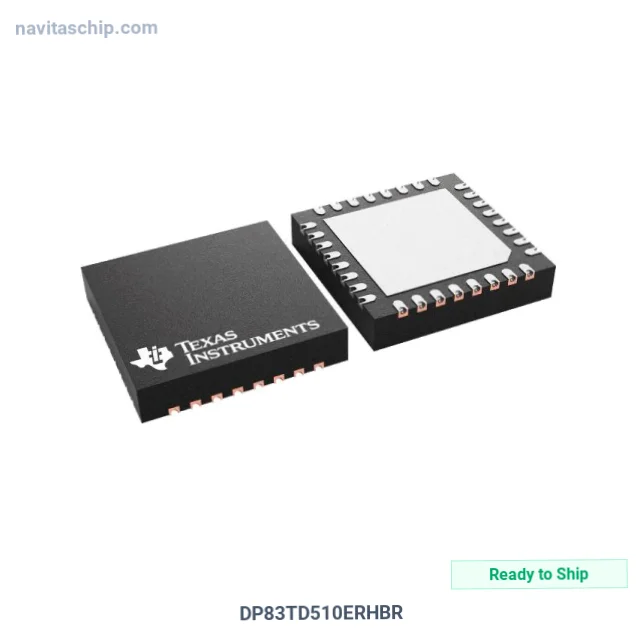

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DP83TD510ERHBR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-13627121 |
| Description | IC TXRX FULL/HALF 1/1 32VQFN |
| Spec | 32-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | IEEE 802.3 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Full, Half |
| Data Rate | 10Mbps |
| Voltage - Supply | 0.9V ~ 1.1V, 1.62V ~ 1.98V, 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 32-VQFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DP83TD510ERHBR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DP83TD510ERHBR is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver Full/half 1/1 32vqfn, housed in a compact 32-VQFN (5x5) package, with 0.9V ~ 1.1V, 1.62V ~ 1.98V, 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 0.9V ~ 1.1V, 1.62V ~ 1.98V, 3V ~ 3.6V
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount, Wettable Flank
- Package: 32-VFQFN Exposed Pad
- Device Package: 32-VQFN (5x5)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
