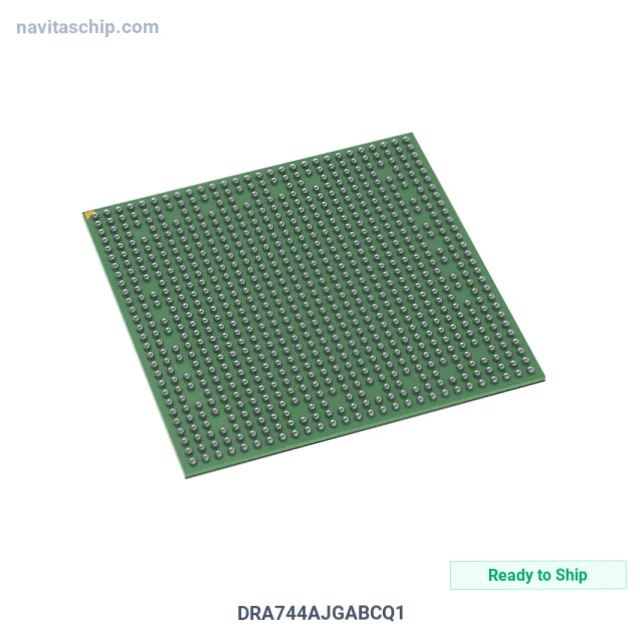

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DRA744AJGABCQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-18185012 |
| Description | IC MPU DRA74X CORTEX-A15 760BGA |
| Spec | 760-BFBGA, FCBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Core Processor | ARM® Cortex®-A15 |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Speed | 1GHz |
| Co-Processors/DSP | ARM® Cortex®-M4, BB2D, C66x, GPU, IVA |
| RAM Controllers | DDR2, DDR3, DDR3L |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | HDMI, LCD |
| Ethernet | 10/100Mbps (1), 10/100/1000Mbps (1) |
| SATA | SATA |
| USB | USB 2.0 (3), USB 3.0 (1) |
| Voltage - I/O | 1.35V, 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Security Features | Cryptography, Debug Security, Device Identity, Isolation Firewalls, Secure Boot, Secure Storage, Software IP Protection |
| Mounting Type | Surface Mount |
| Supplier Device Package | 760-FCBGA (23x23) |
| Additional Interfaces | CANbus, I2C, McASP, SPI, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DRA744AJGABCQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DRA744AJGABCQ1 is an Embedded Processor manufactured by Texas Instruments (TI). Integrated Circuit Microprocessor Dra74x Cortex-A15 in 760-Pin BGA Package, housed in a compact 760-FCBGA (23x23) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 760-BFBGA, FCBGA
- Device Package: 760-FCBGA (23x23)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
