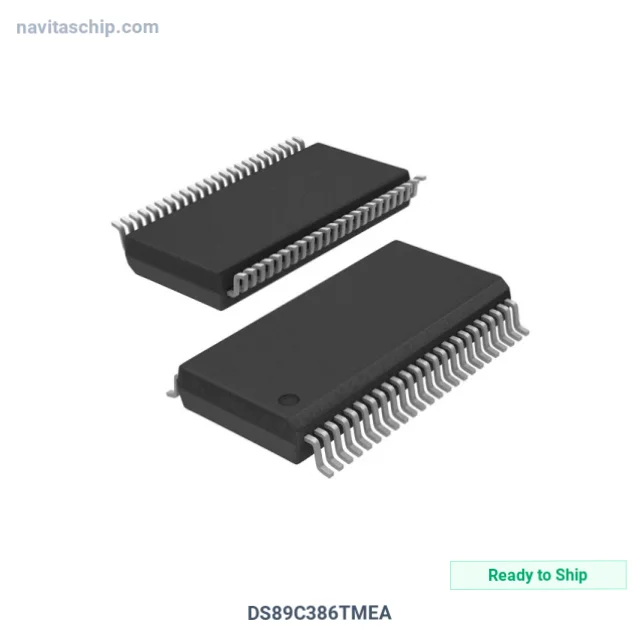

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DS89C386TMEA |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3694778 |
| Description | IC TRANSCEIVER 0/12 48SSOP |
| Spec | 48-BSSOP (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Type | Receiver |
| Protocol | RS422, RS423 |
| Number of Drivers/Receivers | 0/12 |
| Receiver Hysteresis | 70 mV |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-SSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DS89C386TMEA is an Interface Driver Receiver Transceiver IC manufactured by Texas Instruments (TI). Integrated Circuit Transceiver 0/12 in 48-Pin SSOP Package, housed in a compact 48-SSOP package, with 4.5V ~ 5.5V supply voltage. Originally developed by Maxim Integrated.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-BSSOP (0.295", 7.50mm Width)
- Device Package: 48-SSOP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
