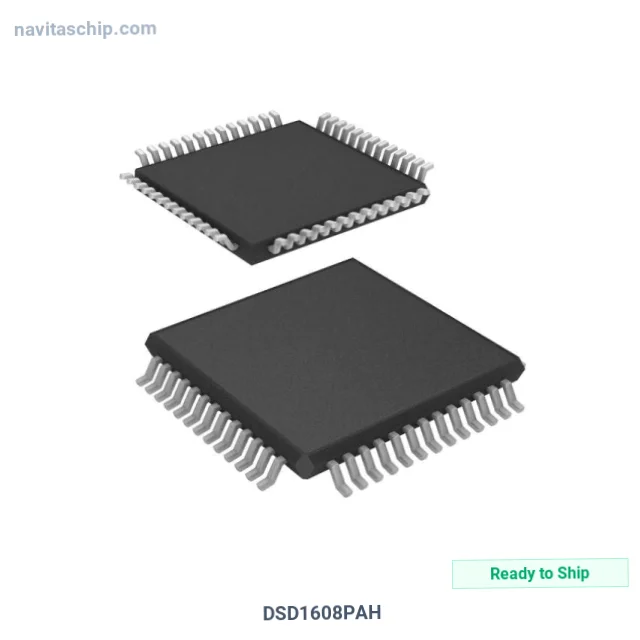

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DSD1608PAH |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-486363 |
| Description | IC DAC/AUDIO 24BIT 200K 52TQFP |
| Spec | 52-TQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Type | DAC, Audio |
| Number of Channels | 8 |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 200k |
| Data Interface | DSD, PCM |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 3V ~ 3.6V, 5V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 52-TQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DSD1608PAH Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DSD1608PAH is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). Integrated Circuit Digital-To-Analog Converter/audio 24bit 200k in 52-Pin TQFP Package, housed in a compact 52-TQFP (10x10) package, with 3V ~ 3.6V, 5V supply voltage. Originally developed by Maxim Integrated.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V, 5V
- Channels: 8
- Operating Temperature: -25°C ~ 85°C
- Mounting: Surface Mount
- Package: 52-TQFP
- Device Package: 52-TQFP (10x10)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
