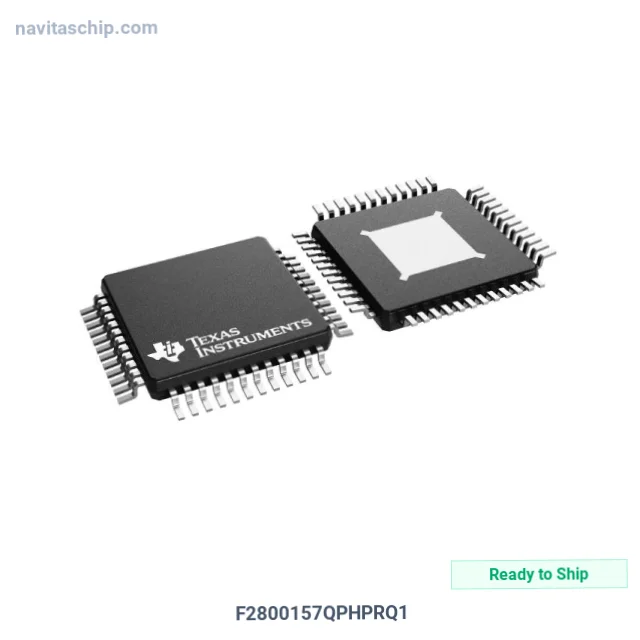

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | F2800157QPHPRQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-21298650 |
| Description | IC MCU 32BIT 256KB FLASH 48HTQFP |
| Spec | 48-PowerTQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Core Processor | TMS320C28x |
| Core Size | 32-Bit Dual-Core |
| Speed | 120MHz |
| Connectivity | CANbus, I2C, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, I2S, POR, PWM, WDT |
| Number of I/O | 27 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 18K x 16 |
| Voltage - Supply (Vcc/Vdd) | 2.8V ~ 3.63V |
| Data Converters | A/D 18x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-HTQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments F2800157QPHPRQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The F2800157QPHPRQ1 is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit 256kb Flash Memory 48htqfp, housed in a compact 48-HTQFP (7x7) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 48-PowerTQFP
- Device Package: 48-HTQFP (7x7)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
