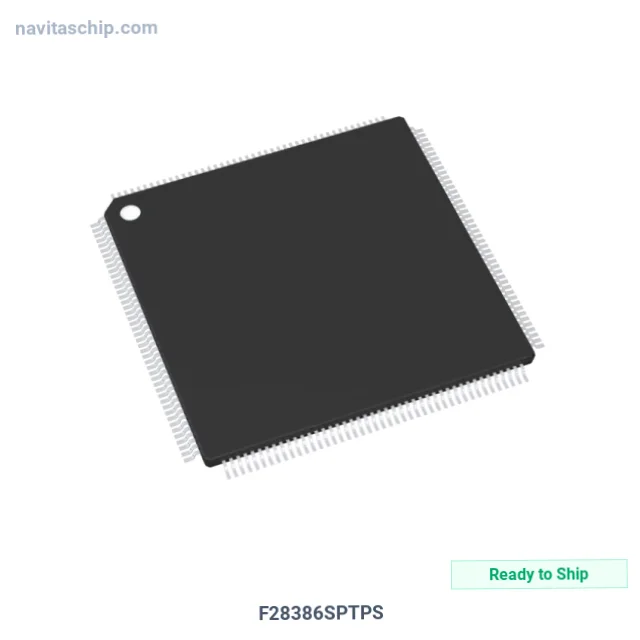

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | F28386SPTPS |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-13918750 |
| Description | IC MCU 32BIT 512KB FLSH 176HLQFP |
| Spec | 176-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Core Processor | C28x |
| Core Size | 32-Bit Dual-Core |
| Speed | 200MHz |
| Connectivity | CANbus, Ethernet, I2C, McBSP, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 97 |
| Program Memory Size | 512KB (256K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 172K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.26V |
| Data Converters | A/D 20x12b, 29x16b SAR; D/A 3x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-HLQFP (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments F28386SPTPS Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The F28386SPTPS is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit 512kb Flash 176hlqfp, housed in a compact 176-HLQFP (24x24) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 176-LQFP Exposed Pad
- Device Package: 176-HLQFP (24x24)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
