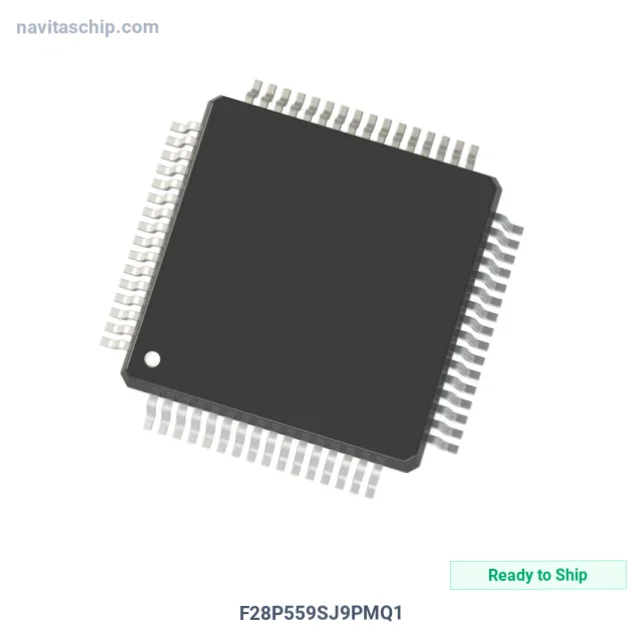

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | F28P559SJ9PMQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-26773888 |
| Description | AUTOMOTIVE C2000 32-BIT MCU WITH |
| Spec | 64-LQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | C28x |
| Core Size | 32-Bit |
| Speed | 150MHz |
| Connectivity | CANbus, I2C, SCI, SPI, UART/USART, USB |
| Peripherals | AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 133K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.8V ~ 3.63V |
| Data Converters | A/D 28x12b SAR; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments F28P559SJ9PMQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The F28P559SJ9PMQ1 is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Automotive C2000 32-Bit Microcontroller With, housed in a compact 64-LQFP (10x10) package.
Facing component shortages? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 64-LQFP
- Device Package: 64-LQFP (10x10)
Applications
Ideal solution for:
- embedded systems
- industrial automation
- professional equipment
- industrial control
- smart home
Why Choose NavitasChip for F28P559SJ9PMQ1?
NavitasChip offers cost-saving procurement for the F28P559SJ9PMQ1 and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
F28P559SJ9PMQ1 sourced and shipped via our Asia-Pacific distribution network.
F28P559SJ9PMQ1 - Check our competitive price now.
