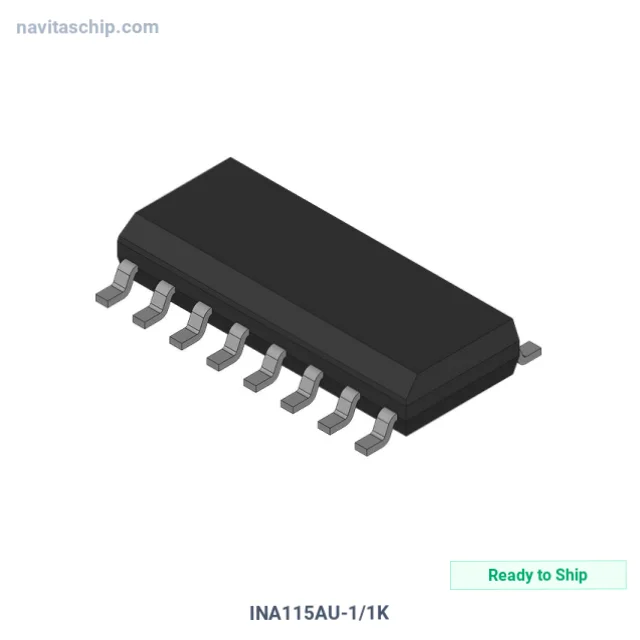

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | INA115AU-1/1K |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-16351045 |
| Description | INA115 PRECISION INSTRUMENTATION |
| Spec | 16-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Obsolete |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Slew Rate | 0.6V/µs |
| -3db Bandwidth | 1 MHz |
| Current - Input Bias | 500 pA |
| Voltage - Input Offset | 25 µV |
| Current - Supply | 2.2mA |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments INA115AU-1/1K Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The INA115AU-1/1K is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Ina115 Precision Instrumentation, housed in a compact 16-SOIC package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-SOIC (0.295", 7.50mm Width)
- Device Package: 16-SOIC
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
