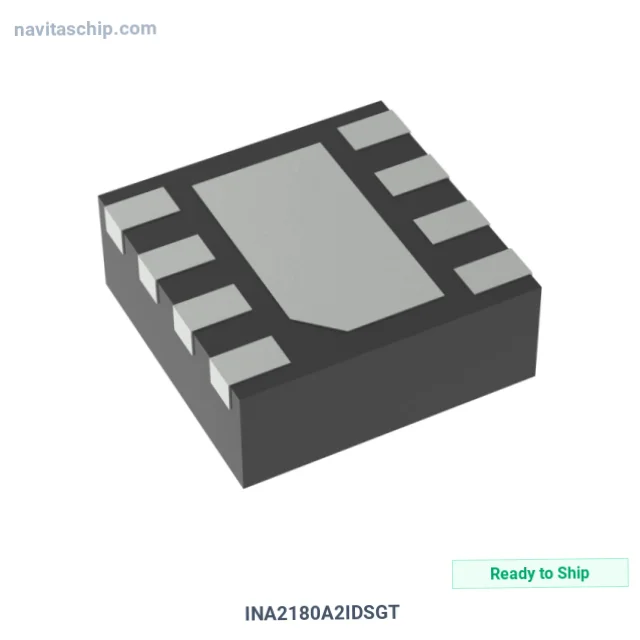

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | INA2180A2IDSGT |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-12352375 |
| Description | IC CURRENT SENSE 2 CIRCUIT 8WSON |
| Spec | 8-WFDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| Amplifier Type | Current Sense |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 2V/µs |
| -3db Bandwidth | 210 kHz |
| Current - Input Bias | 80 µA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 355µA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WSON (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments INA2180A2IDSGT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The INA2180A2IDSGT is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Current Sense 2 Circuit in 8-Pin WSON Package, housed in a compact 8-WSON (2x2) package.
In today's market, annual BOM cost reduction pressure can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 8-WFDFN Exposed Pad
- Device Package: 8-WSON (2x2)
- RoHS Compliant
Applications
Widely adopted for:
- IoT devices
- zero-drift, chopper-stabilized and auto-zero op amp for ultra-low-offset precision sensing
- CMOS op amp with sub-microampere quiescent current for always-on battery-powered applications
- low-power and micro-power op amp for portable, wearable and energy-harvesting designs
Why Choose NavitasChip for INA2180A2IDSGT?
NavitasChip offers cost-effective alternative to authorized distributors for the INA2180A2IDSGT and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Fast INA2180A2IDSGT delivery to Singapore and India via DHL, FedEx, and UPS.
INA2180A2IDSGT - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
