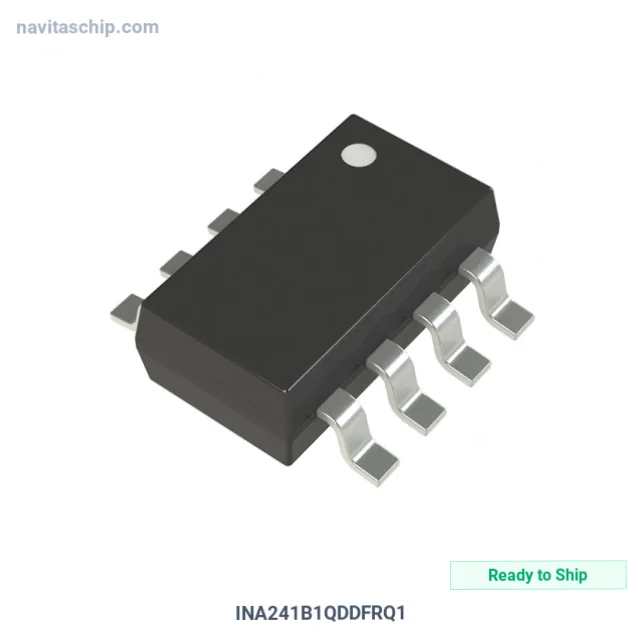

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | INA241B1QDDFRQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-21298642 |
| Description | AEC-Q100 -4V TO 110V BIDIRECTIO |
| Spec | SOT-23-8 Thin, TSOT-23-8 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 8V/µs |
| -3db Bandwidth | 1.1 MHz |
| Current - Input Bias | 35 µA |
| Voltage - Input Offset | 25 µV |
| Current - Supply | 2.5mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 20 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-23-8 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments INA241B1QDDFRQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The INA241B1QDDFRQ1 is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Automotive Grade-Q100 -4V Supply to 110V Supply Bidirectio, housed in a compact TSOT-23-8 package.
In today's market, JFET-input op amp legacy designs lacking modern CMOS pin-compatible equivalent for low-bias photometry stages can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: SOT-23-8 Thin, TSOT-23-8
- Device Package: TSOT-23-8
Applications
Ideal solution for:
- general-purpose operational amplifier for analog signal buffering, amplification and conditioning
- low-noise op amp with low input voltage and current noise for high-resolution analog front-ends
- high-voltage op amp rated 36 V to 60 V for industrial sensor front-ends and motor control
- zero-drift precision alternative to discontinued Linear LTC1050, LTC2050 and Maxim MAX4238 chopper-stabilized parts
Why Choose NavitasChip for INA241B1QDDFRQ1?
NavitasChip offers cost-effective alternative to authorized distributors for the INA241B1QDDFRQ1 and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Fast INA241B1QDDFRQ1 delivery to Sweden and Norway via DHL, FedEx, and UPS.
INA241B1QDDFRQ1 - Check our competitive price now.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
