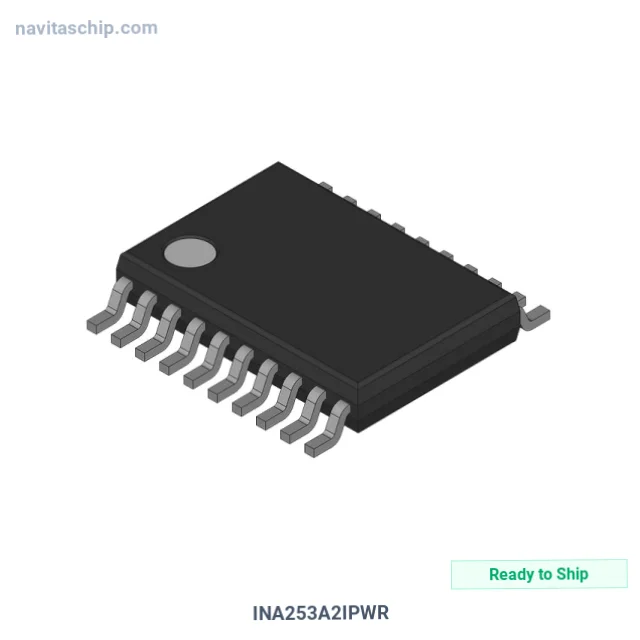

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | INA253A2IPWR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-10448372 |
| Description | IC CURR SENSE 1 CIRCUIT 20TSSOP |
| Spec | 20-TSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Slew Rate | 2.4V/µs |
| -3db Bandwidth | 350 kHz |
| Current - Input Bias | 90 µA |
| Current - Supply | 1.8mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments INA253A2IPWR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The INA253A2IPWR is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Curr Sense 1 Circuit in 20-Pin TSSOP Package, housed in a compact 20-TSSOP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 20-TSSOP (0.173", 4.40mm Width)
- Device Package: 20-TSSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
