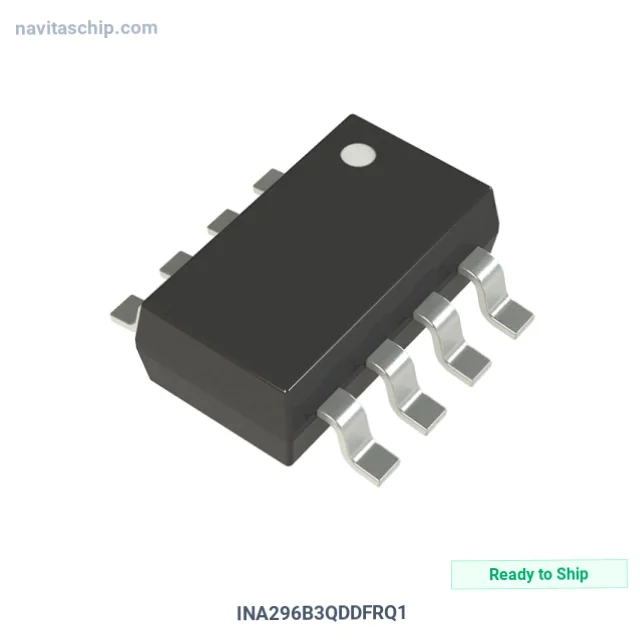

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | INA296B3QDDFRQ1 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-21298762 |
| Description | AEC-Q100 -5V TO 110V BIDIRECTI |
| Spec | SOT-23-8 Thin, TSOT-23-8 |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Current Sense |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 8V/µs |
| -3db Bandwidth | 1.1 MHz |
| Current - Input Bias | 35 µA |
| Voltage - Input Offset | 25 µV |
| Current - Supply | 2.5mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 20 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | TSOT-23-8 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments INA296B3QDDFRQ1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The INA296B3QDDFRQ1 is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Automotive Grade-Q100 -5V Supply to 110V Supply Bidirecti, housed in a compact TSOT-23-8 package.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: SOT-23-8 Thin, TSOT-23-8
- Device Package: TSOT-23-8
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
