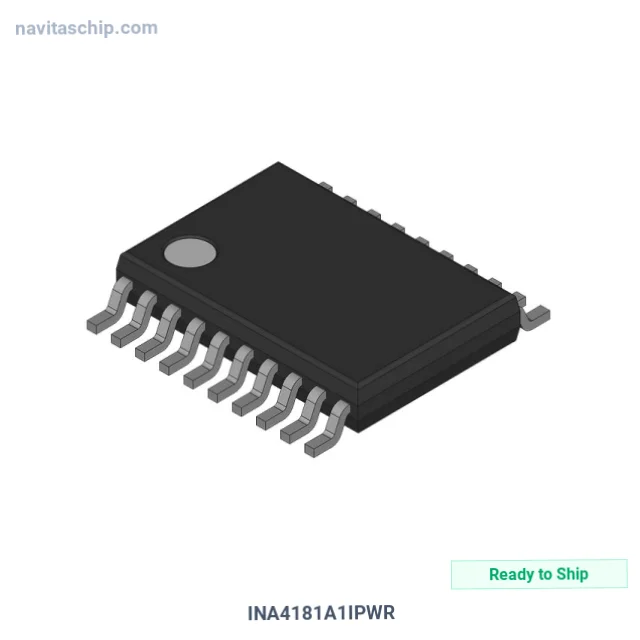

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | INA4181A1IPWR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-9091878 |
| Description | IC CURR SENSE 4 CIRCUIT 20TSSOP |
| Spec | 20-TSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Current Sense |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 2V/µs |
| -3db Bandwidth | 350 kHz |
| Current - Input Bias | 75 µA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 690µA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments INA4181A1IPWR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The INA4181A1IPWR is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Curr Sense 4 Circuit in 20-Pin TSSOP Package, housed in a compact 20-TSSOP package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 20-TSSOP (0.173", 4.40mm Width)
- Device Package: 20-TSSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
