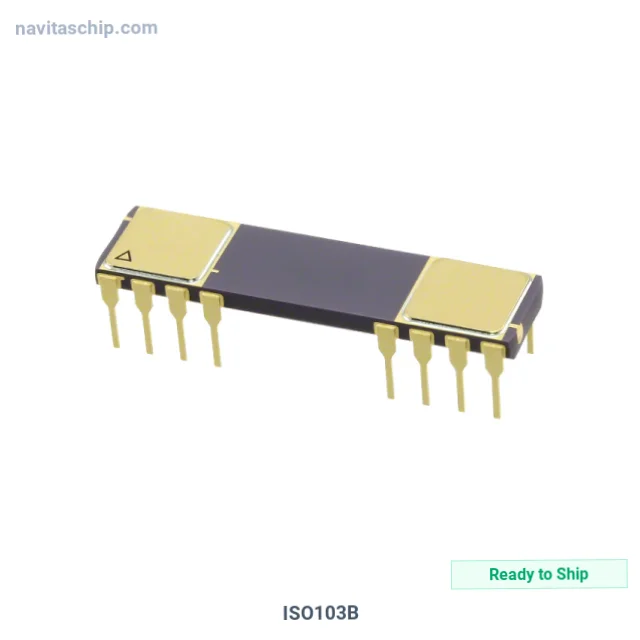

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ISO103B |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-301055 |
| Description | IC OPAMP ISOLATION 1 CIRC 16CDIP |
| Spec | 24-CDIP (0.600", 15.24mm), 16 Leads |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| Slew Rate | 1.5V/µs |
| -3db Bandwidth | 20 kHz |
| Voltage - Input Offset | 20 mV |
| Current - Supply | 90mA |
| Current - Output / Channel | 15 mA |
| Voltage - Supply Span (Min) | 20 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments ISO103B Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ISO103B is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier Isolation 1 Circ 16cdip, housed in a compact 16-CDIP package.
Key Technical Specifications
- Operating Temperature: -25°C ~ 85°C
- Mounting: Through Hole
- Package: 24-CDIP (0.600", 15.24mm), 16 Leads
- Device Package: 16-CDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
