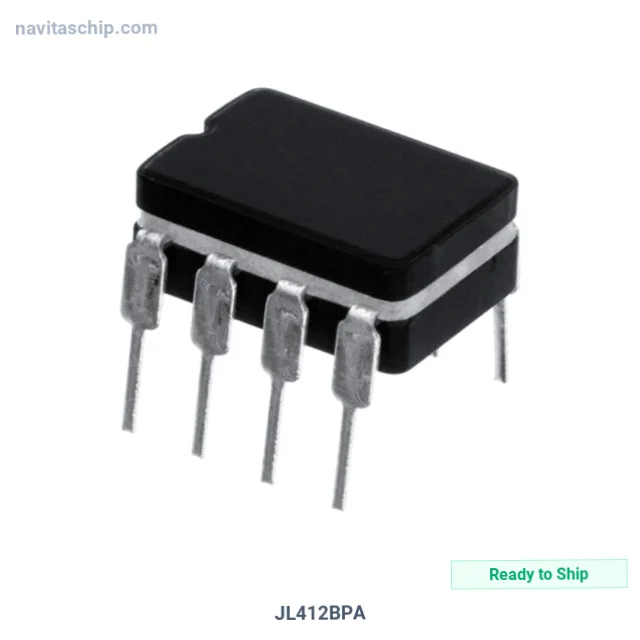

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | JL412BPA |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-5641722 |
| Description | IC OPAMP JFET 2 CIRCUIT 8CDIP |
| Spec | 8-CDIP (0.300", 7.62mm) |
| Package | Bag |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Bag |
| Product Status | Obsolete |
| Amplifier Type | J-FET |
| Number of Circuits | 2 |
| Slew Rate | 7V/µs |
| Gain Bandwidth Product | 3 MHz |
| Current - Input Bias | 50 nA |
| Voltage - Input Offset | 7 mV |
| Current - Output / Channel | 80 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 10 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments JL412BPA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The JL412BPA is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Operational Amplifier JFET 2 Circuit 8cdip, housed in a compact 8-CDIP package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 8-CDIP (0.300", 7.62mm)
- Device Package: 8-CDIP
Packaging: factory Bag or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
