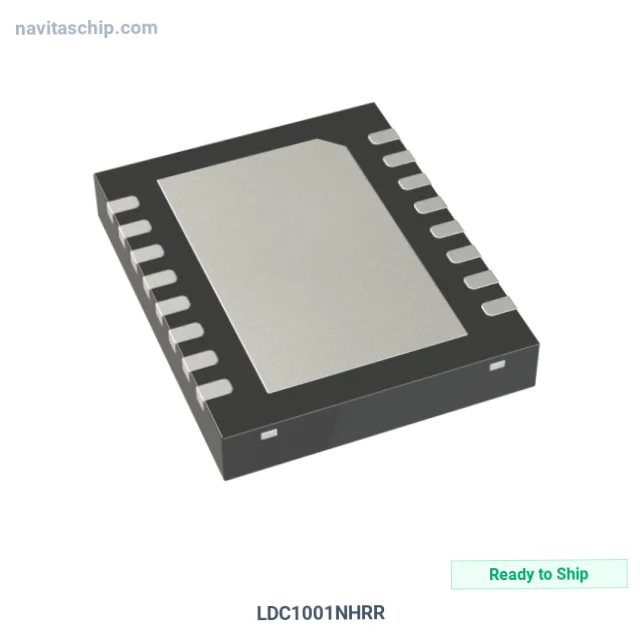

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LDC1001NHRR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-9865953 |
| Description | IC IND TO DGTL CONV 16BIT 16WSON |
| Spec | 16-WFDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Inductance-to-Digital Converter |
| Number of Channels | 2 |
| Resolution (Bits) | 16 b |
| Data Interface | SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 3.3V, 5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-WSON (5x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LDC1001NHRR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LDC1001NHRR is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). Integrated Circuit Industrial to Dgtl Converter 16bit in 16-Pin WSON Package, housed in a compact 16-WSON (5x4) package, with 3.3V, 5V supply voltage.
Don't let quarterly cost-down targets slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Supply Voltage: 3.3V, 5V
- Channels: 2
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-WFDFN Exposed Pad
- Device Package: 16-WSON (5x4)
- RoHS Compliant
Applications
Ideal solution for:
- professional equipment
- in-vehicle infotainment audio systems and aftermarket head units
- hearing assistive devices and high-end personal audio equipment
- EV charging infrastructure metering and commercial vehicle telematics aftermarket
Why Choose NavitasChip for LDC1001NHRR?
NavitasChip offers cost-effective alternative to authorized distributors for the LDC1001NHRR and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for LDC1001NHRR with regional warehouse support.
LDC1001NHRR - Request a quote today.
