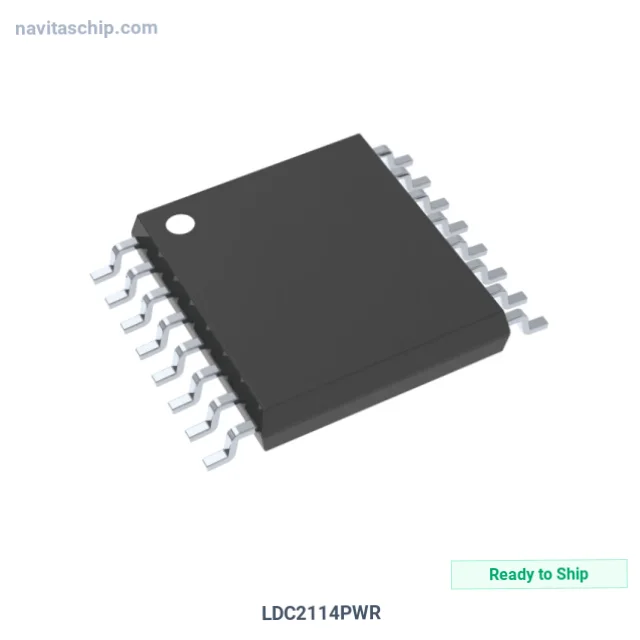

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LDC2114PWR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-8105919 |
| Description | IC IND TO DGT CONV 12BIT 16TSSOP |
| Spec | 16-TSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Inductance-to-Digital Converter |
| Number of Channels | 4 |
| Resolution (Bits) | 12 b |
| Data Interface | I2C |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 1.71V ~ 1.89V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LDC2114PWR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LDC2114PWR is an Audio Codec and Special-Purpose Data Converter IC manufactured by Texas Instruments (TI). Integrated Circuit Industrial to Dgt Converter 12bit in 16-Pin TSSOP Package, housed in a compact 16-TSSOP package, with 1.71V ~ 1.89V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.71V ~ 1.89V
- Channels: 4
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-TSSOP (0.173", 4.40mm Width)
- Device Package: 16-TSSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
