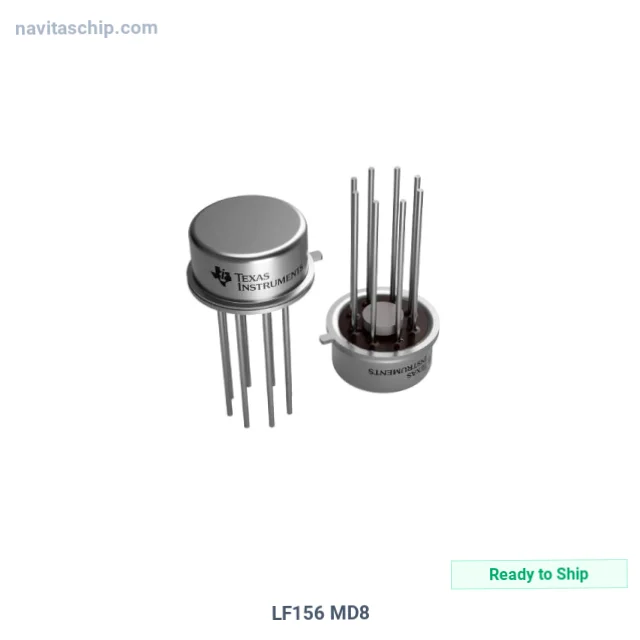

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LF156 MD8 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-18177759 |
| Description | SINGLE, 40-V, 5-MHZ, -55 TO 125C |
| Spec | Die |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | J-FET |
| Number of Circuits | 1 |
| Output Type | Push-Pull |
| Slew Rate | 12V/µs |
| Gain Bandwidth Product | 5 MHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 5mA |
| Voltage - Supply Span (Min) | 30 V |
| Voltage - Supply Span (Max) | 40 V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Die |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LF156 MD8 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LF156 MD8 is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Single, housed in a compact Die package.
Key Technical Specifications
- Output Type: Push-Pull
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: Die
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
