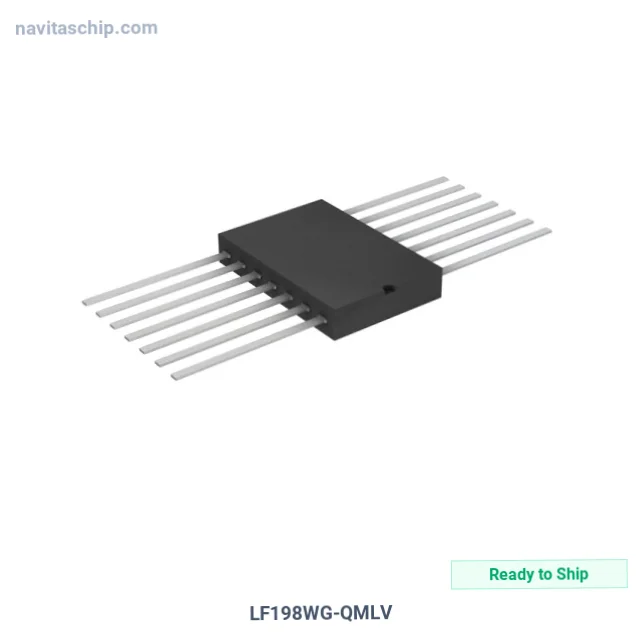

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LF198WG-QMLV |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-18587696 |
| Description | MONOLITHIC SAMPLE AND HOLD CIRCU |
| Spec | 14-CSOIC (0.250", 6.35mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Sample and Hold |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Current - Input Bias | 75 nA |
| Voltage - Input Offset | 5 mV |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-CFP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LF198WG-QMLV Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LF198WG-QMLV is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Monolithic Sample and Hold Circu, housed in a compact 14-CFP package.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 14-CSOIC (0.250", 6.35mm Width)
- Device Package: 14-CFP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
