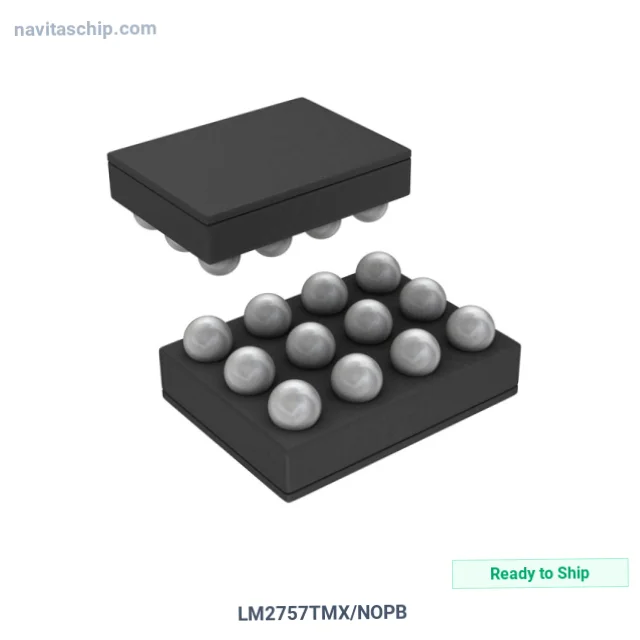

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LM2757TMX/NOPB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1871106 |
| Description | IC REG CHARGE PUMP PROG 12DSBGA |
| Spec | 12-WFBGA, DSBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Charge Pump |
| Output Type | Programmable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 4.1V, 4.5V, 5V |
| Current - Output | 180mA |
| Frequency - Switching | 1.242MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 12-DSBGA (1.64x1.24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LM2757TMX/NOPB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LM2757TMX/NOPB is a DC-DC Switching Voltage Regulator manufactured by Texas Instruments (TI). Integrated Circuit Regulator Charge Pump Programmable in 12-Pin BGA Package, housed in a compact 12-DSBGA (1.64x1.24) package.
Key Technical Specifications
- Output Type: Programmable
- Operating Temperature: -30°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 12-WFBGA, DSBGA
- Device Package: 12-DSBGA (1.64x1.24)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
