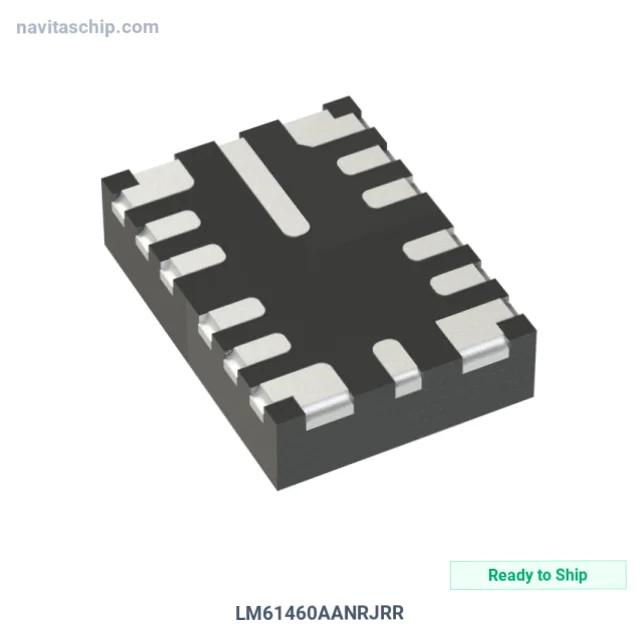

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LM61460AANRJRR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-12165587 |
| Description | IC REG BUCK ADJ 6A 14VQFN |
| Spec | 14-PowerVFQFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 34V |
| Current - Output | 6A |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 14-VQFN-HR (4x3.5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LM61460AANRJRR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LM61460AANRJRR is a DC-DC Switching Voltage Regulator manufactured by Texas Instruments (TI). Integrated Circuit Regulator Buck Adjustable 6a 14vqfn, housed in a compact 14-VQFN-HR (4x3.5) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting: Surface Mount, Wettable Flank
- Package: 14-PowerVFQFN
- Device Package: 14-VQFN-HR (4x3.5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
