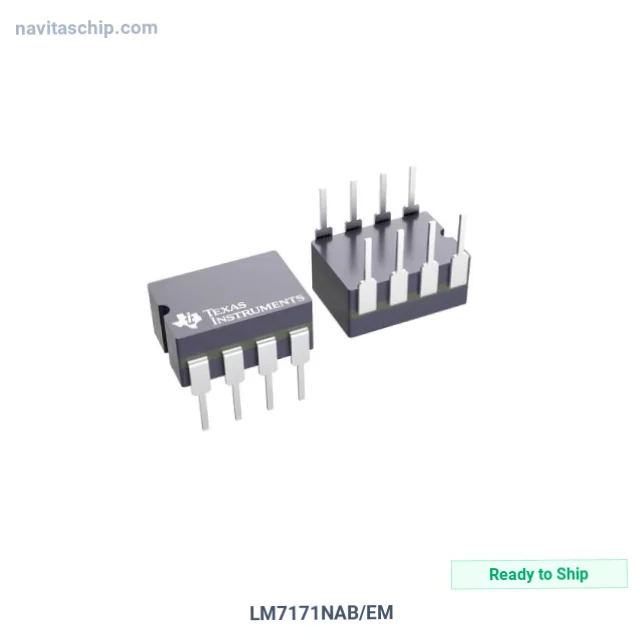

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LM7171NAB/EM |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-15666840 |
| Description | VERY HIGH-SPEED, HIGH OUTPUT CUR |
| Spec | 8-CDIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Output Type | Push-Pull |
| Slew Rate | 2000V/µs |
| Gain Bandwidth Product | 170 MHz |
| -3db Bandwidth | 220 MHz |
| Current - Input Bias | 10 µA |
| Voltage - Input Offset | 1 mV |
| Current - Output / Channel | 105 mA |
| Voltage - Supply Span (Min) | 5.5 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LM7171NAB/EM Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LM7171NAB/EM is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Very High-Speed, housed in a compact 8-CDIP package.
Key Technical Specifications
- Output Type: Push-Pull
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 8-CDIP (0.300", 7.62mm)
- Device Package: 8-CDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
