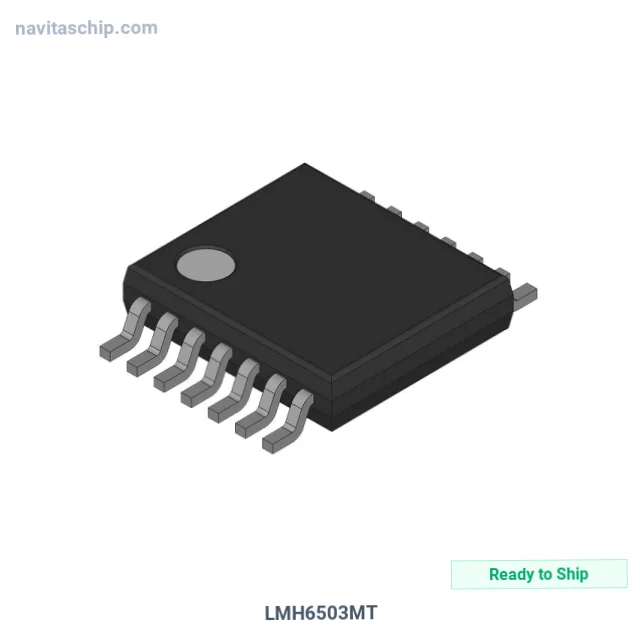

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LMH6503MT |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-15643239 |
| Description | LMH6503 WIDEBAND, LOW POWER, LIN |
| Spec | 14-TSSOP (0.173", 4.40mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | Variable Gain |
| Number of Circuits | 1 |
| Slew Rate | 1800V/µs |
| -3db Bandwidth | 135 MHz |
| Current - Input Bias | 11 µA |
| Current - Supply | 37mA |
| Current - Output / Channel | 90 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LMH6503MT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LMH6503MT is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Lmh6503 Wideband, housed in a compact 14-TSSOP package. Originally developed by National Semiconductor.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 14-TSSOP (0.173", 4.40mm Width)
- Device Package: 14-TSSOP
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
