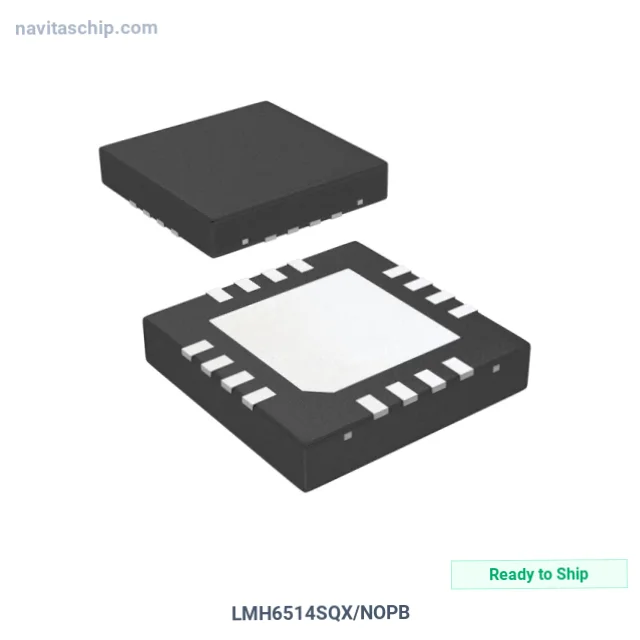

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LMH6514SQX/NOPB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1872120 |
| Description | IC VARIABLE GAIN 1 CIRC 16WQFN |
| Spec | 16-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Variable Gain |
| Number of Circuits | 1 |
| Output Type | Differential |
| -3db Bandwidth | 600 MHz |
| Current - Supply | 107mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-WQFN (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LMH6514SQX/NOPB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LMH6514SQX/NOPB is an Operational Amplifier (Op Amp) manufactured by Texas Instruments (TI). Integrated Circuit Variable Gain 1 Circ 16wqfn, housed in a compact 16-WQFN (4x4) package. Originally developed by National Semiconductor.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-WFQFN Exposed Pad
- Device Package: 16-WQFN (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
